Rectangular YZ Plane Object

yz_rect(
  x = 0,
  y = 0,
  z = 0,
  ywidth = 1,
  zwidth = 1,
  material = diffuse(),
  angle = c(0, 0, 0),
  order_rotation = c(1, 2, 3),
  flipped = FALSE,
  scale = c(1, 1, 1)
)

Arguments

x

Default `0`. x-coordinate of the center of the rectangle.

y

Default `0`. y-coordinate of the center of the rectangle.

z

Default `0`. z-coordinate of the center of the rectangle.

ywidth

Default `1`. y-width of the rectangle.

zwidth

Default `1`. z-width of the rectangle.

material

Default diffuse.The material, called from one of the material functions diffuse, metal, or dielectric.

angle

Default `c(0, 0, 0)`. Angle of rotation around the x, y, and z axes, applied in the order specified in `order_rotation`.

order_rotation

Default `c(1, 2, 3)`. The order to apply the rotations, referring to "x", "y", and "z".

flipped

Default `FALSE`. Whether to flip the normals.

scale

Default `c(1, 1, 1)`. Scale transformation in the x, y, and z directions. If this is a single value, number, the object will be scaled uniformly. Note: emissive objects may not currently function correctly when scaled.

Value

Single row of a tibble describing the YZ plane in the scene.

Examples

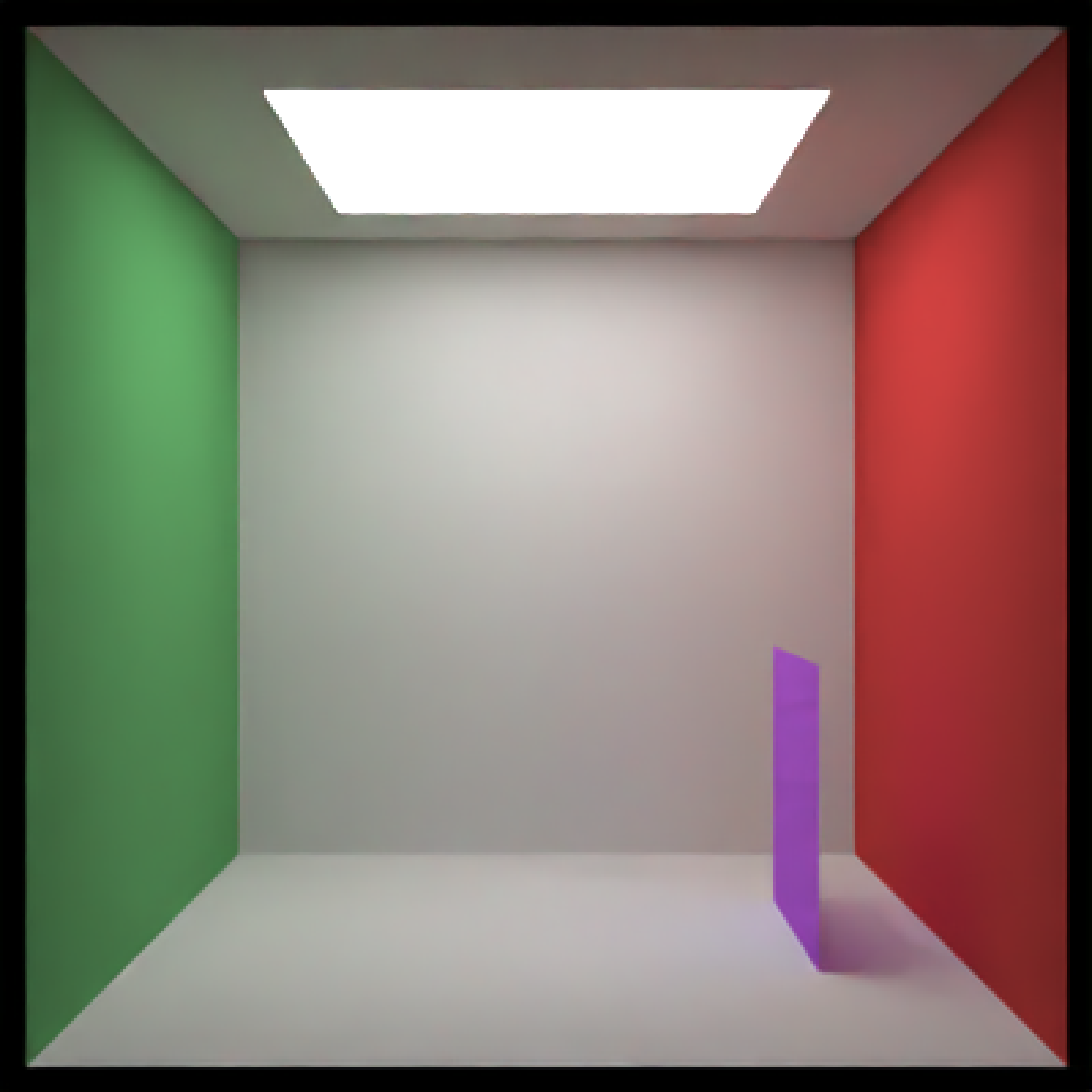

#Generate a purple rectangle in the cornell box.
if(run_documentation()) {
generate_cornell() %>%
  add_object(yz_rect(x = 100, y = 100, z = 555/2, ywidth = 200, zwidth = 200,
                     material = diffuse(color = "purple"))) %>%
  render_scene(lookfrom = c(278, 278, -800) ,lookat = c(278, 278, 0), fov = 40,
               ambient_light = FALSE, samples = 128, parallel = TRUE, clamp_value = 5)
}

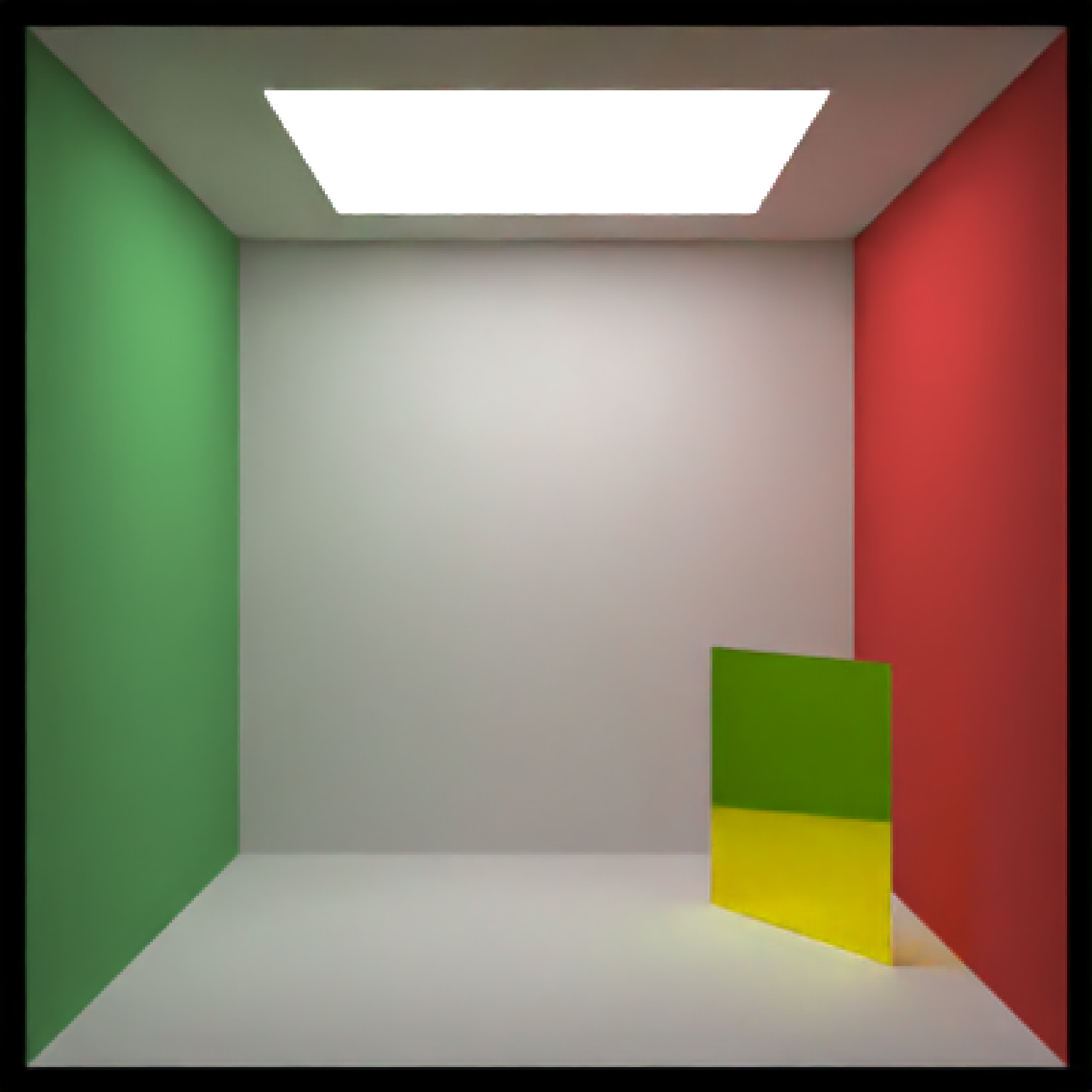

#Generate a gold plane in the cornell box
if(run_documentation()) {
generate_cornell() %>%
  add_object(yz_rect(x = 100, y = 100, z = 555/2,
                     ywidth = 200, zwidth = 200, angle = c(0, 30, 0),
                     material = metal(color = "gold"))) %>%
  render_scene(lookfrom = c(278, 278, -800) ,lookat = c(278, 278, 0), fov = 40,
               ambient_light = FALSE, samples = 128, parallel = TRUE, clamp_value = 5)
}
