Takes the scene description and renders an image using ambient occlusion, either to the device or to a filename.
render_ao(
scene,
width = 400,
height = 400,
fov = 20,
sample_dist = 10,
keep_colors = FALSE,
samples = 100,
camera_description_file = NA,
camera_scale = 1,
iso = 100,
film_size = 22,
min_variance = 0,
min_adaptive_size = 8,
sample_method = "sobol",
background_color = "white",
lookfrom = c(0, 1, 10),
lookat = c(0, 0, 0),
camera_up = c(0, 1, 0),
aperture = 0.1,
clamp_value = Inf,
filename = NULL,
shutteropen = 0,
shutterclose = 1,
focal_distance = NULL,
ortho_dimensions = c(1, 1),
parallel = TRUE,
bvh_type = "sah",
progress = interactive(),
verbose = FALSE
)Arguments
- scene
Tibble of object locations and properties.
- width
Default `400`. Width of the render, in pixels.
- height
Default `400`. Height of the render, in pixels.
- fov
Default `20`. Field of view, in degrees. If this is `0`, the camera will use an orthographic projection. The size of the plane used to create the orthographic projection is given in argument `ortho_dimensions`. From `0` to `180`, this uses a perspective projections. If this value is `360`, a 360 degree environment image will be rendered.
- sample_dist
Default `10`. Ambient occlusion sampling distance.
- keep_colors
Default `FALSE`. Whether to keep the diffuse material colors.
- samples
Default `100`. The maximum number of samples for each pixel. If this is a length-2 vector and the `sample_method` is `stratified`, this will control the number of strata in each dimension. The total number of samples in this case will be the product of the two numbers.
- camera_description_file
Default `NA`. Filename of a camera description file for rendering with a realistic camera. Several camera files are built-in: `"50mm"`,`"wide"`,`"fisheye"`, and `"telephoto"`.
- camera_scale
Default `1`. Amount to scale the camera up or down in size. Use this rather than scaling a scene.
- iso
Default `100`. Camera exposure.
- film_size
Default `22`, in `mm` (scene units in `m`. Size of the film if using a realistic camera, otherwise ignored.
- min_variance
Default `0.00005`. Minimum acceptable variance for a block of pixels for the adaptive sampler. Smaller numbers give higher quality images, at the expense of longer rendering times. If this is set to zero, the adaptive sampler will be turned off and the renderer will use the maximum number of samples everywhere.
- min_adaptive_size
Default `8`. Width of the minimum block size in the adaptive sampler.
- sample_method
Default `sobol`. The type of sampling method used to generate random numbers. The other options are `random` (worst quality but fastest), `stratified` (only implemented for completion), `sobol_blue` (best option for sample counts below 256), and `sobol` (slowest but best quality, better than `sobol_blue` for sample counts greater than 256).
- background_color
Default `"white"`. Background color.
- lookfrom
Default `c(0,1,10)`. Location of the camera.
- lookat
Default `c(0,0,0)`. Location where the camera is pointed.
- camera_up
Default `c(0,1,0)`. Vector indicating the "up" position of the camera.
- aperture
Default `0.1`. Aperture of the camera. Smaller numbers will increase depth of field, causing less blurring in areas not in focus.
- clamp_value
Default `Inf`. If a bright light or a reflective material is in the scene, occasionally there will be bright spots that will not go away even with a large number of samples. These can be removed (at the cost of slightly darkening the image) by setting this to a small number greater than 1.
- filename
Default `NULL`. If present, the renderer will write to the filename instead of the current device.
- shutteropen
Default `0`. Time at which the shutter is open. Only affects moving objects.
- shutterclose
Default `1`. Time at which the shutter is open. Only affects moving objects.
- focal_distance
Default `NULL`, automatically set to the `lookfrom-lookat` distance unless otherwise specified.
- ortho_dimensions
Default `c(1,1)`. Width and height of the orthographic camera. Will only be used if `fov = 0`.
- parallel
Default `FALSE`. If `TRUE`, it will use all available cores to render the image (or the number specified in `options("cores")` if that option is not `NULL`).
- bvh_type
Default `"sah"`, "surface area heuristic". Method of building the bounding volume hierarchy structure used when rendering. Other option is "equal", which splits tree into groups of equal size.
- progress
Default `TRUE` if interactive session, `FALSE` otherwise.
- verbose
Default `FALSE`. Prints information and timing information about scene construction and raytracing progress.
Value
Raytraced plot to current device, or an image saved to a file. Invisibly returns the array (containing either debug data or the RGB)
Examples

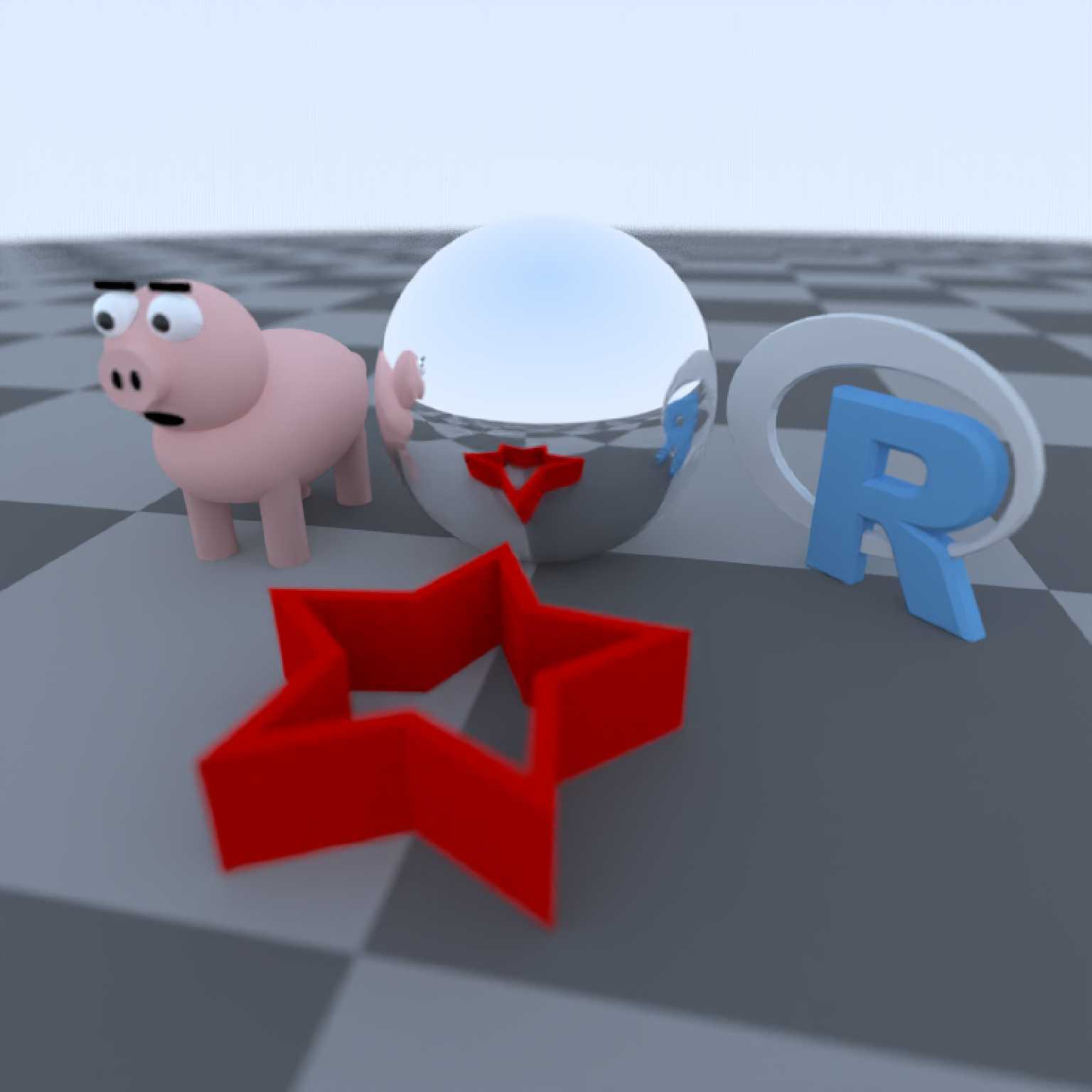

#Generate and render a regular scene and an ambient occlusion version of that scene
if(run_documentation()) {
angles = seq(0,360,by=36)
xx = rev(c(rep(c(1,0.5),5),1) * sinpi(angles/180))
yy = rev(c(rep(c(1,0.5),5),1) * cospi(angles/180))
star_polygon = data.frame(x=xx,y=yy)
hollow_star = rbind(star_polygon,0.8*star_polygon)
generate_ground(material = diffuse(color="grey20", checkercolor = "grey50",sigma=90)) %>%
add_object(sphere(material=metal())) %>%
add_object(obj_model(y=-1,x=-1.8,r_obj(), angle=c(0,135,0),material = diffuse(sigma=90))) %>%
add_object(pig(x=1.8,y=-1.2,scale=0.5,angle=c(0,90,0),diffuse_sigma = 90)) %>%
add_object(extruded_polygon(hollow_star,top=-0.5,bottom=-1, z=-2,
hole = nrow(star_polygon),
material=diffuse(color="red",sigma=90))) %>%
render_scene(parallel = TRUE,width=800,height=800,
fov=70,clamp_value=10,samples=128, aperture=0.1,
lookfrom=c(-0.9,1.2,-4.5),lookat=c(0,-1,0))
}
if(run_documentation()) {

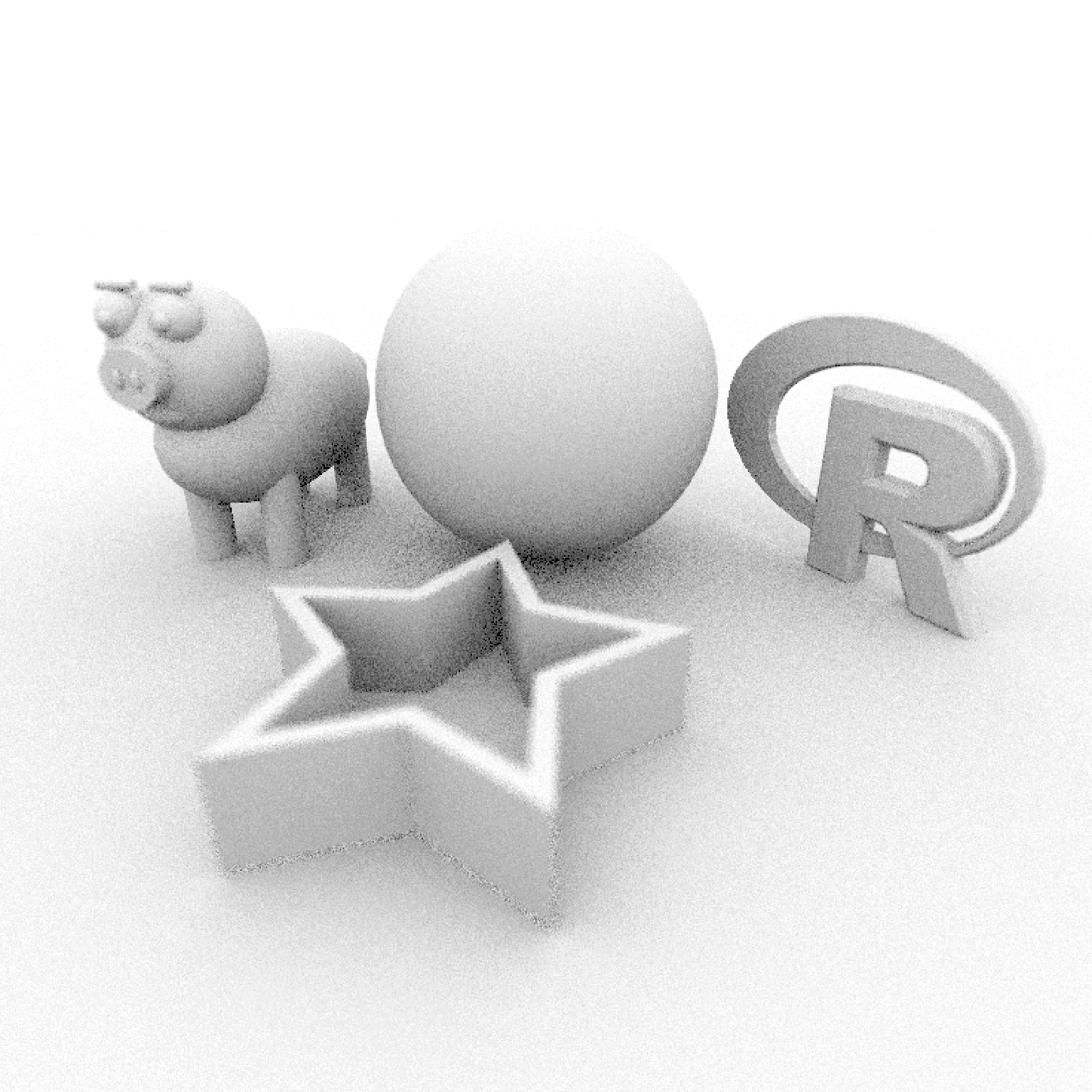

#Render the scene with ambient occlusion
generate_ground(material = diffuse(color="grey20", checkercolor = "grey50",sigma=90)) %>%
add_object(sphere(material=metal())) %>%
add_object(obj_model(y=-1,x=-1.8,r_obj(), angle=c(0,135,0),material = diffuse(sigma=90))) %>%
add_object(pig(x=1.8,y=-1.2,scale=0.5,angle=c(0,90,0),diffuse_sigma = 90)) %>%
add_object(extruded_polygon(hollow_star,top=-0.5,bottom=-1, z=-2,
hole = nrow(star_polygon),
material=diffuse(color="red",sigma=90))) %>%
render_ao(parallel = TRUE,width=800,height=800, sample_dist=10,
fov=70,samples=128, aperture=0.1,
lookfrom=c(-0.9,1.2,-4.5),lookat=c(0,-1,0))
}
#> Error in render_scene_rcpp(camera_info = camera_info, scene_info = scene_info): argument "scene" is missing, with no default
if(run_documentation()) {

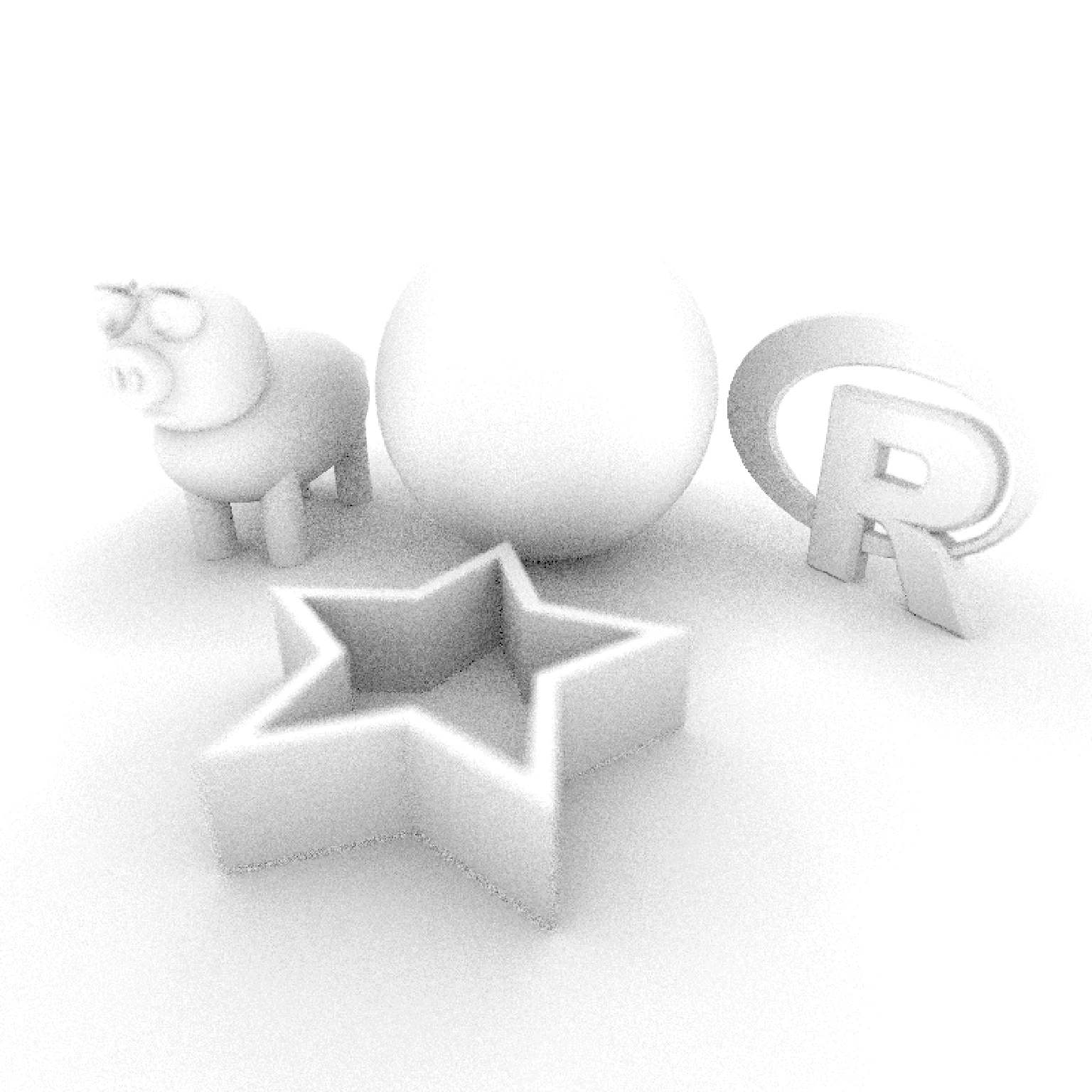

#Decrease the ray occlusion search distance
generate_ground(material = diffuse(color="grey20", checkercolor = "grey50",sigma=90)) %>%
add_object(sphere(material=metal())) %>%
add_object(obj_model(y=-1,x=-1.8,r_obj(), angle=c(0,135,0),material = diffuse(sigma=90))) %>%
add_object(pig(x=1.8,y=-1.2,scale=0.5,angle=c(0,90,0),diffuse_sigma = 90)) %>%
add_object(extruded_polygon(hollow_star,top=-0.5,bottom=-1, z=-2,
hole = nrow(star_polygon),
material=diffuse(color="red",sigma=90))) %>%
render_ao(parallel = TRUE,width=800,height=800, sample_dist=1,
fov=70,samples=128, aperture=0.1,
lookfrom=c(-0.9,1.2,-4.5),lookat=c(0,-1,0))
}
#> Error in render_scene_rcpp(camera_info = camera_info, scene_info = scene_info): argument "scene" is missing, with no default
if(run_documentation()) {

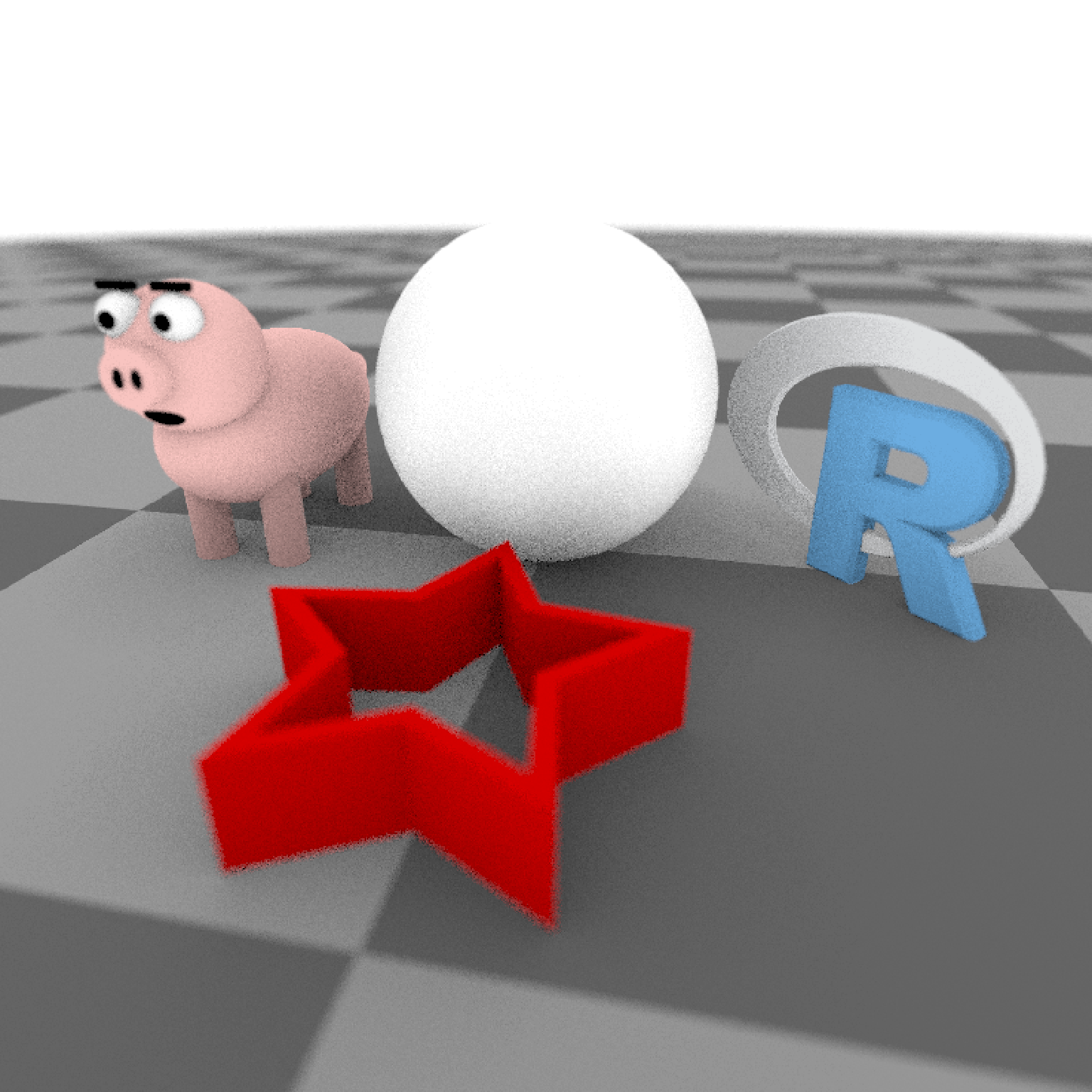

#Turn on colors
generate_ground(material = diffuse(color="grey20", checkercolor = "grey50",sigma=90)) %>%
add_object(sphere(material=metal())) %>%
add_object(obj_model(y=-1,x=-1.8,r_obj(), angle=c(0,135,0),material = diffuse(sigma=90))) %>%
add_object(pig(x=1.8,y=-1.2,scale=0.5,angle=c(0,90,0),diffuse_sigma = 90)) %>%
add_object(extruded_polygon(hollow_star,top=-0.5,bottom=-1, z=-2,
hole = nrow(star_polygon),
material=diffuse(color="red",sigma=90))) %>%
render_ao(parallel = TRUE,width=800,height=800, sample_dist=1,
fov=70,samples=128, aperture=0.1, keep_colors = TRUE,
lookfrom=c(-0.9,1.2,-4.5),lookat=c(0,-1,0))
}
#> Error in render_scene_rcpp(camera_info = camera_info, scene_info = scene_info): argument "scene" is missing, with no default
