CSG Box

CSG Box

csg_box(x = 0, y = 0, z = 0, width = c(1, 1, 1), corner_radius = 0)

Arguments

x

Default `0`. An x-coordinate on the box.

y

Default `0`. A y-coordinate on the box.

z

Default `0`. A z-coordinate on the box

width

Default `c(1,1,1)`. Length-3 vector describing the x/y/z widths of the box

corner_radius

Default `0`. Radius if rounded box.

Value

List describing the box in the scene.

Examples

if(rayrender:::run_documentation()) {

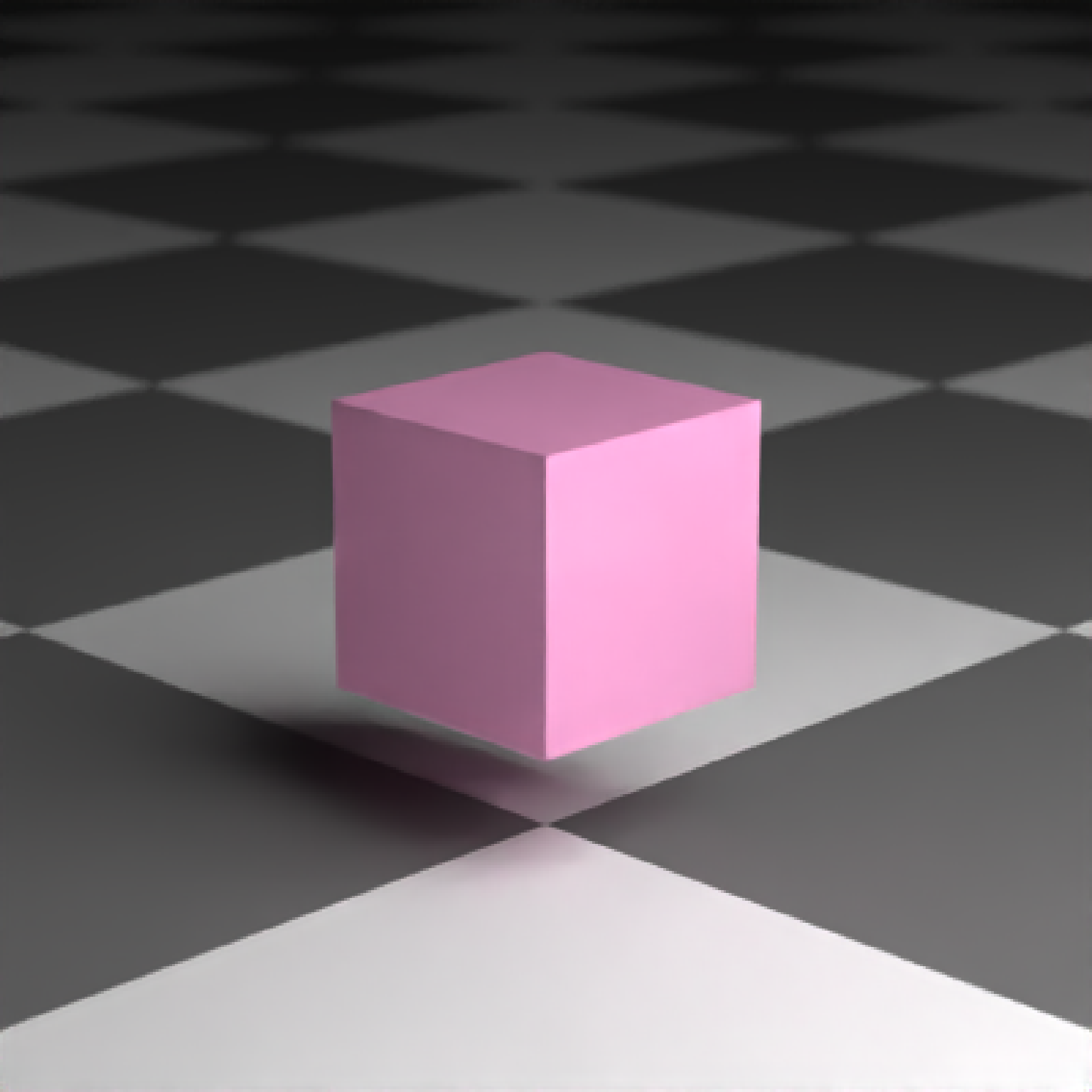

#Generate a box
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_box(), material=glossy(color="#FF69B4"))) %>%
  add_object(sphere(y=5,x=5,radius=3,material=light(intensity=5))) %>%
  render_scene(clamp_value=10,lookfrom=c(7,3,7))
  }

if(rayrender:::run_documentation()) {

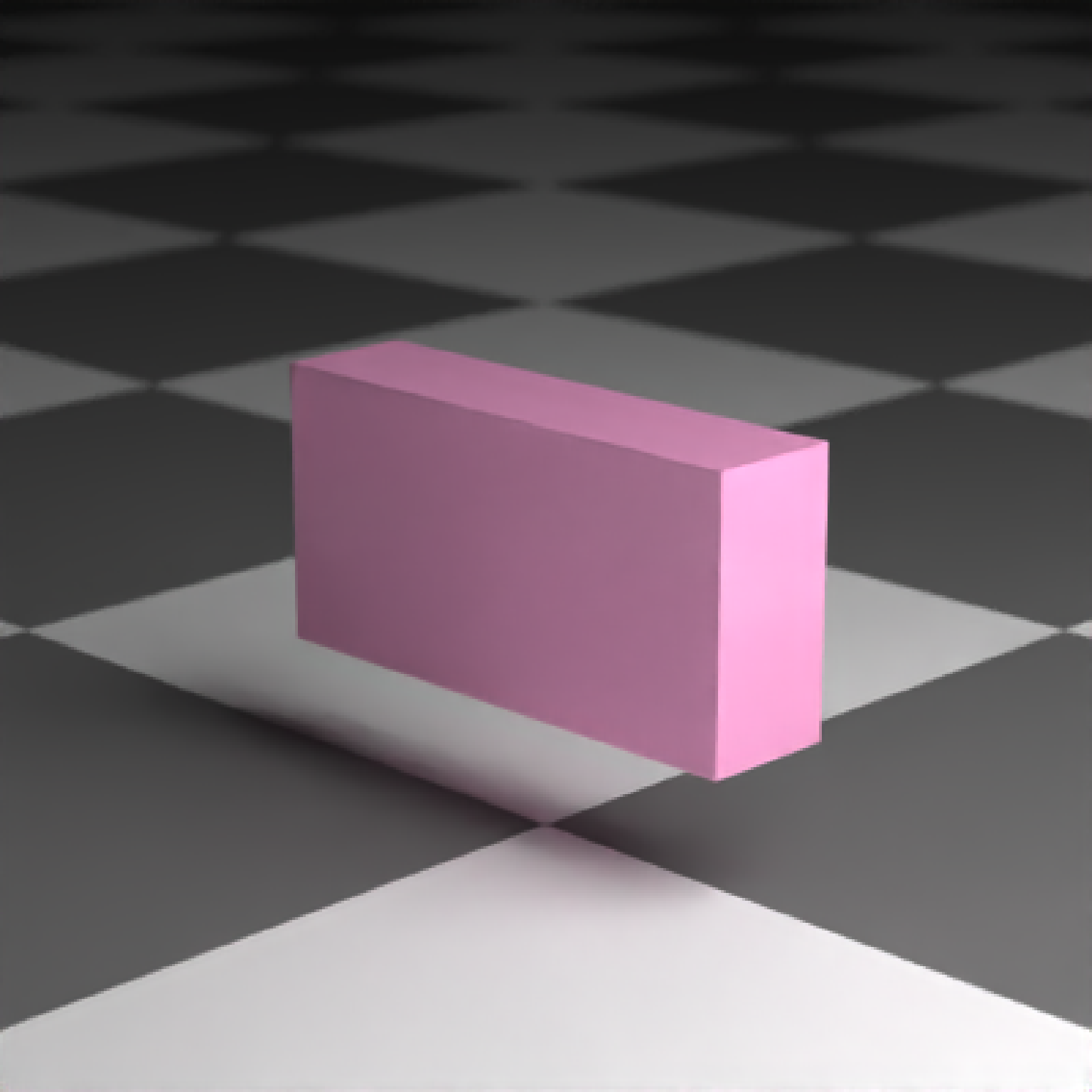

#Change the width
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_box(width = c(2,1,0.5)), material=glossy(color="#FF69B4"))) %>%
  add_object(sphere(y=5,x=5,radius=3,material=light(intensity=5))) %>%
  render_scene(clamp_value=10,lookfrom=c(7,3,7))
}

if(rayrender:::run_documentation()) {

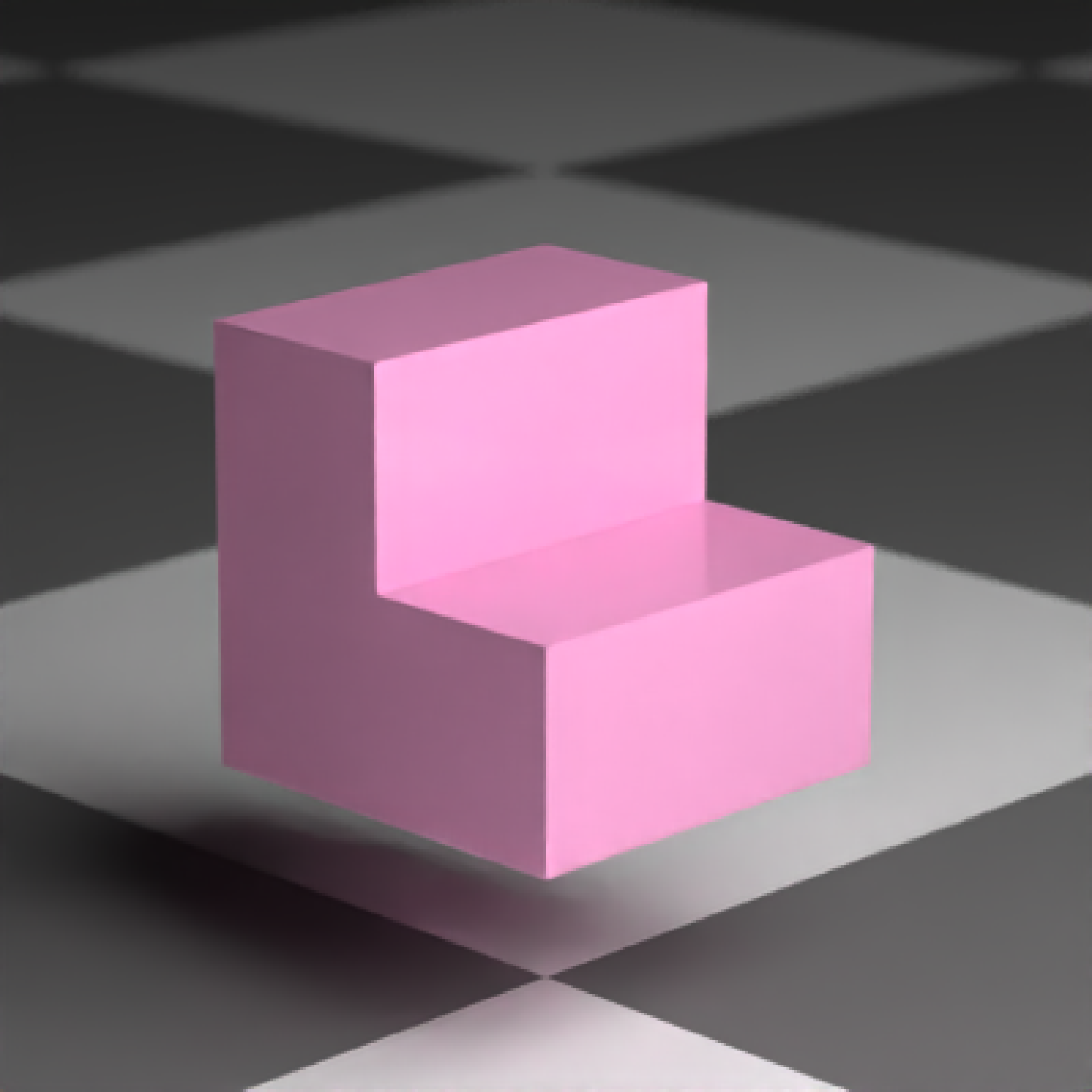

#Subtract two boxes to make stairs
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_combine(
    csg_box(),
    csg_box(x=0.5,y=0.5,width=c(1,1,1.1)),operation="subtract"),
   material=glossy(color="#FF69B4"))) %>%
  add_object(sphere(y=5,x=5,radius=3,material=light(intensity=5))) %>%
  render_scene(clamp_value=10,lookfrom=c(7,3,7),fov=13)
  }
